Curtain Wall

VISTAFORGE custom aluminum curtain walls connect design–manufacture–installation into one flow.

Grids, module, and color are coordinated with the architecture; thermal-break options and Low-E IGUs; site detailing to North American codes for a clean, durable finish.

WHY CURTAIN WALL

Slim sightlines, big glass

for brighter interiors

Consistent exterior look

that upgrades any elevation

Energy-minded options

(thermal breaks, Low-E IGUs)

Fast, coordinated install

with our design–build team

PERFORMANCE & SPECIFICATIONS

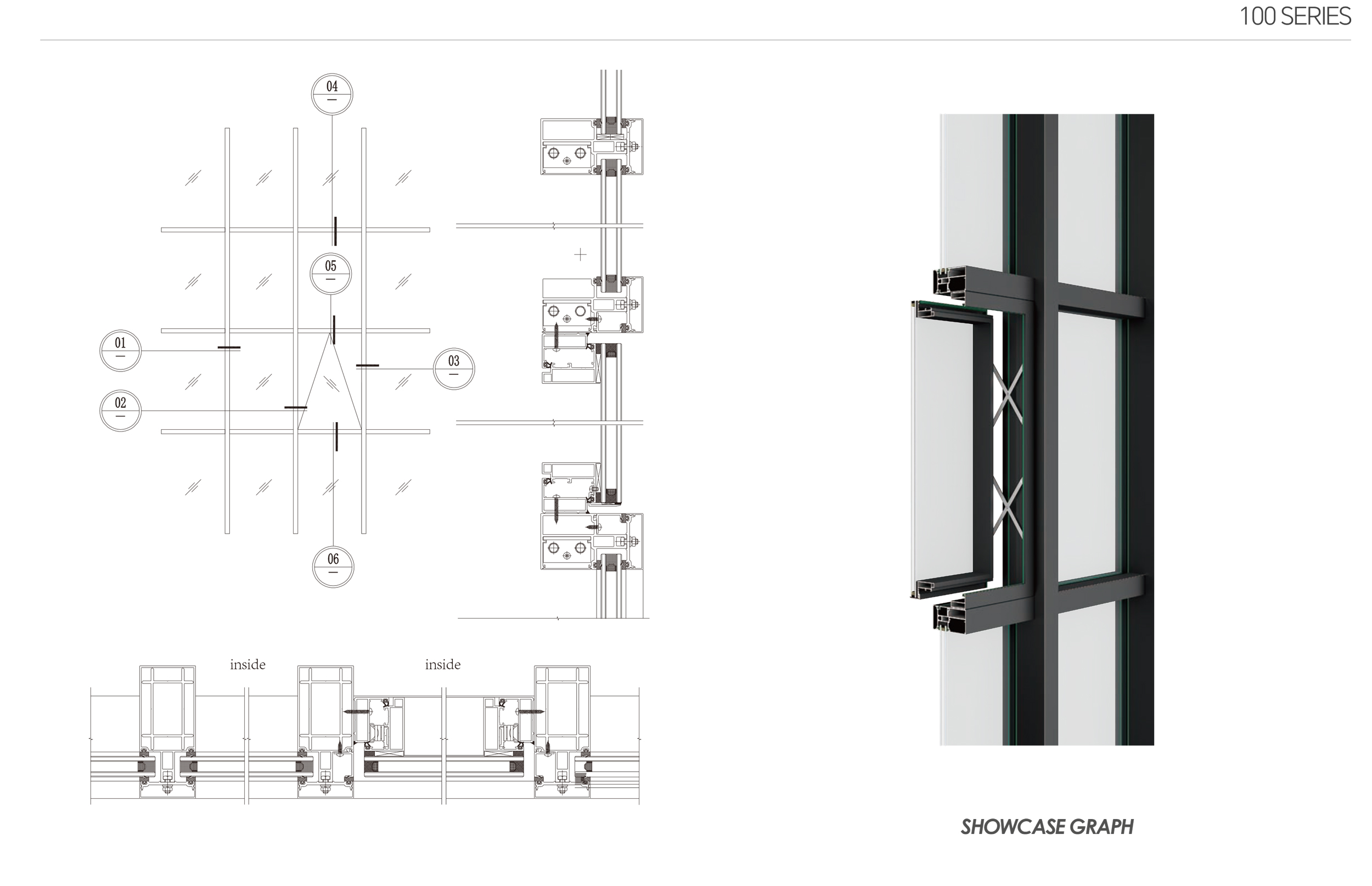

100 SERIES

Technical Parameters

Frame thickness:2.0mm

Size Range

Sash width 450mm-750mm, Sash height 750mm-1400mm

Glass Specification

6mm+12A+6mm double clear tempered glass

Heat Insulation Strip

Non-broken bridge

Product Function

Curtain Wall

Product Advantage

Multiple frame options: grooved, hidden, and semi-hidden designs.
High-grade 6063 aluminum ensures strength and corrosion resistance.
Double-glazed tempered glass for enhanced safety and stability.
2.0mm main profile thickness improves load-bearing and wind resistance.

120 SERIES

Technical Parameters

Frame thickness: 3.0mm

Size Range

Sash width 450mm-750mm, Sash height 750mm-1400mm

Glass Specification

6mm+12A+6mm double clear tempered glass

Heat Insulation Strip

Non-broken bridge

Product Function

Curtain Wall

Product Advantage

Multiple frame options: grooved, hidden, and semi-hidden designs.
High-grade 6063 aluminum ensures strength and corrosion resistance.
6+12+6 double-glazed tempered glass for safety and stability.
3.0mm main profile thickness improves load-bearing and wind resistance.
